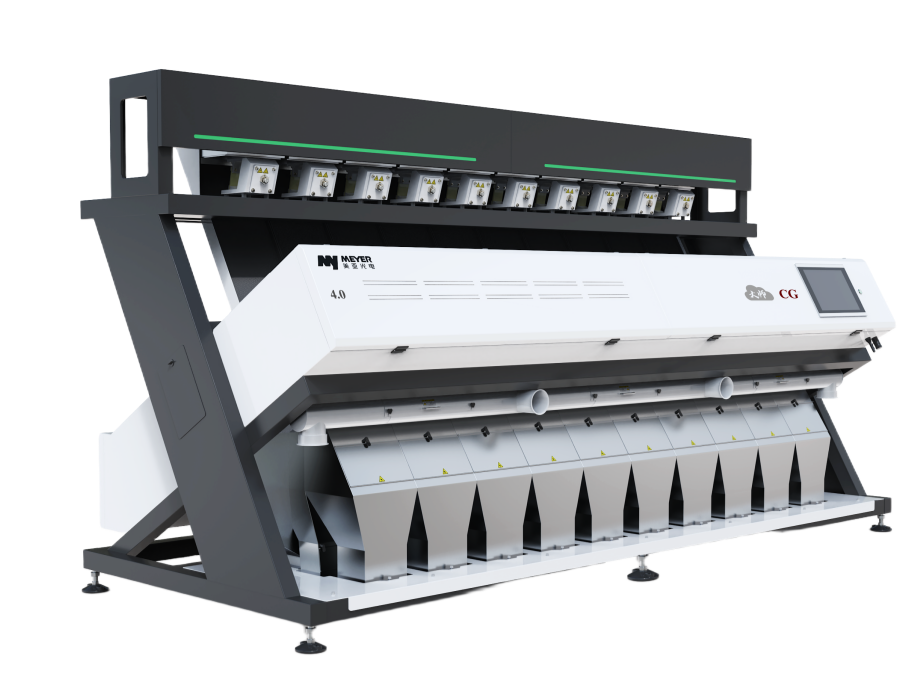

KS Series(Double Layer) Plastic Color Sorter

Double-layer re-sorting, pure final products and lower loss

Select：

240KS
480KS
720KS

Inquiry Email 0086-0551-65306653

Product Introduction
Application Field
Product Specificities
More Specificities
Technical Specifications
More Products

Product Introduction

☛ Suitable for color sorting of plastic pellets with large particles and easy to rebound, sling bottle pieces, etc., in which the double-layer belt structure can carry out secondary purification of final products or impurities to make the final products pure and lower loss.

Application Field

☛ Plastic: Plastic Pellets

Product Specificities

Double-layer re-sorting Structure

Dramatically increase the final product soritng accuracy, reduce losses and increase revenue.

Engineered Design, Intelligent Manufacturing

The whole machine's structure is highly modular and standardized, and 70% of the parts and components had automated and intelligently produced, which greatly enhances the reliability of products. Guarantee the effect of continuous processing, long-term use of stable, lower maintenance costs, more assured after-sales.

More Specificities

Digital Electrical Control System

Adoption of topological structure reduces redundant control modules by 45% and realizes hidden wiring design, which controls the sudden failure of core components from the source and guarantees a stable and reliable operation process.

High-frequency Vibrator

Adopting high-frequency vibration motor, compact structure, high efficiency, more stable material drop.

Highly Hermetic Sorting Chamber

Airtightness > 99%, providing sufficient protection against dust, water and oil for stable operation.

Ultra-HD Camera System

Adopting low distortion camera lens, industrial-grade four-color CCD sensor, the minimum identification area can reach 0.0025mm², to ensure clearer material identification.

Targeted Positioning Technology

Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.

Maglev Ejector 3.0

using a new integrated connection structure, can achieve ultra-high-speed response, more accurate rejection, up to 1200 times per second; millisecond start-stop,direct gas supply, lower loss; standardized design, unmanned production, longer service life, more convenient maintenance.

Simple Interface

Modular UI design makes the operation more simple; built-in learning package that you can easily get training courseware.

Remote Service

PC/mobile control, can provide online after-sales service such as commissioning, physical examination, maintenance guidance.

Technical Specifications

Name	Model	Power (kw)	Voltage (V)	Air Pressure (MPa)	Air Consumption (m³/min)	Dimension (LWH mm)	Weight (kg)
KS Series	6SXZ-240KS4	6.2	180～240 50Hz	0.6～0.8	<3.0	356016002615	1250
	6SXZ-480KS4	7.8	180～240 50Hz	0.6～0.8	<6.0	356022002615	1650
	6SXZ-720KS4	12.6	180～240 50Hz	0.6～0.8	<9.0	356028002615	2250
