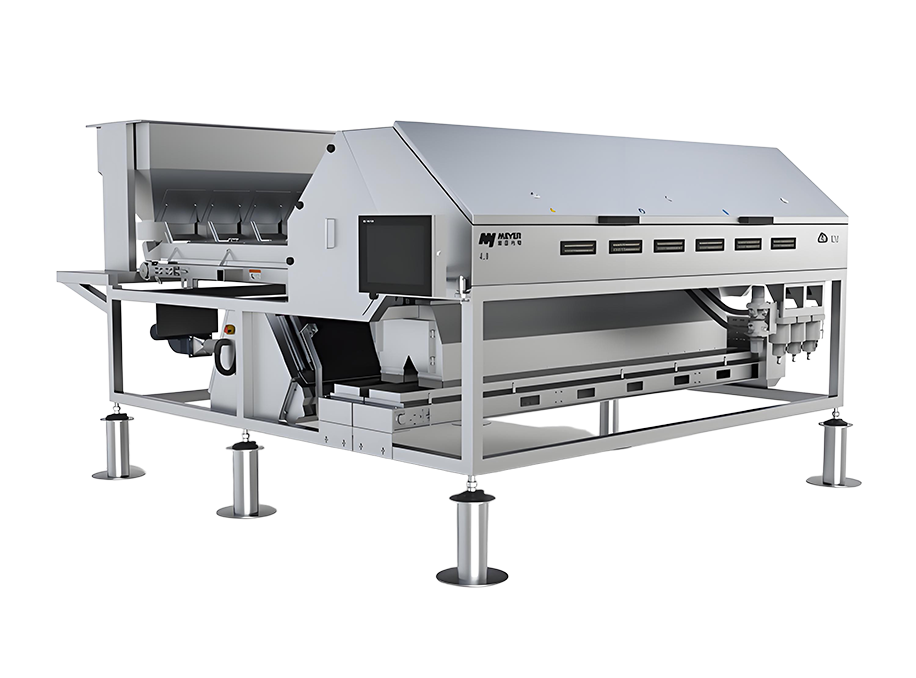

KC Series Whole Bottle Sorter

Innovative hyperspectral imaging system, which can realize multi-category whole bottle polymer sorting

Select：

360KC
240KC

Inquiry Email 0086-551-65306653

Product Introduction
Application Field
Product Videos
Product Specificities
More Specificities
Technical Specifications
More Products

Product Introduction

☛ Suitable for removing non-PET bottles in PET bottles, non-PE polymer in milk bottles/daily chemical products, and non-PP polymer in lunch boxes. Innovatively equipped with hyperspectral imaging system, it can realize multi-category whole bottle polymer sorting with high sorting precision, which effectively replaces manual work and reduces operation cost.

Application Field

☛ Plastic: Plastic Whole Bottle

Product Videos

Product Specificities

Hyperspectral imaging system

Supports full-spectrum data acquisition with higher spectral resolution, which can realize multi-category whole bottle polymer sorting.

Intelligent Whole Bottle Transmission System

Innovative with screed device and special anti-rolling conveyor belt, with the guarantee of large output, the whole bottle sorting effect is more stable.

More Specificities

Digital Electrical Control System

Adoption of topological structure reduces redundant control modules by 45% and realizes hidden wiring design, which controls the sudden failure of core components from the source and guarantees a stable and reliable operation process.

High-frequency Vibrator

Adopting high-frequency vibration motor, compact structure, high efficiency, more stable material drop.

Ultra-HD Camera System

Adopting low distortion camera lens, industrial-grade four-color CCD sensor, the minimum identification area can reach 0.0025mm², to ensure clearer material identification.

Targeted Positioning Technology

Three-dimensional reconstruction of material information, accurate positioning of the center point of impurities, to help the color sorter reject more accurate.

Maglev Ejector 3.0

using a new integrated connection structure, can achieve ultra-high-speed response, more accurate rejection, up to 1200 times per second; millisecond start-stop,direct gas supply, lower loss; standardized design, unmanned production, longer service life, more convenient maintenance.

Simple Interface

Modular UI design makes the operation more simple; built-in learning package that you can easily get training courseware.

Remote Service

PC/mobile control, can provide online after-sales service such as commissioning, physical examination, maintenance guidance.

Technical Specifications

Name

Model

Power

(kw)

Voltage

(V)

Air Pressure

(MPa)

Air Consumption

(m³/min)

Dimension

(L*W*H mm)

Weight

(kg)

KC Series

6SXZ-240KC-GY

4.0

180～240 50Hz

0.6～0.8

<4.5

4815*2220*2415

1250

6SXZ-360KC-GY

5.7

180～240 50Hz

0.6～0.8

<6.5

4815*2850*2415

1510
